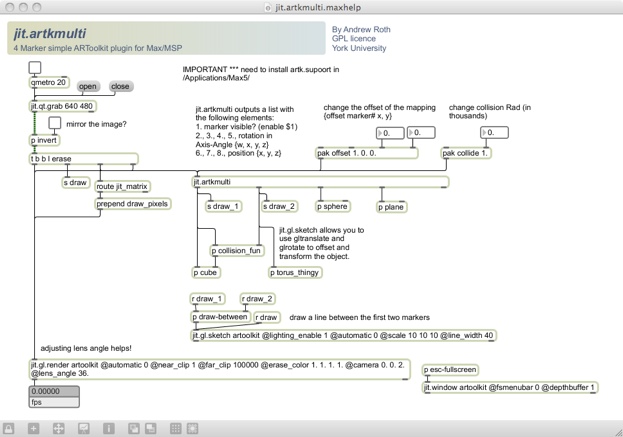

artoolkit example

Max/MSP + Jitter - ARTookit External

Download .mxo (UB) | Download .mxe (WIN) | Code at Github

“ARToolKit is a software library for building Augmented Reality (AR) applications. These are applications that involve the overlay of virtual imagery on the real world. For example, in the image to the right a three-dimensional virtual character appears standing on a real card. It can be seen by the user in the head set display they are wearing. When the user moves the card, the virtual character moves with it and appears attached to the real object.”


Subject to ARToolkit GPL, see ARToolworks for information on commercial licensing.

artoolkit example

Known Issues:

Hard coded for 640 x 480 : other dims don’t work, changing dims causes crash.

Only one jit.artkmulti object at a time, multiple objects causes output to cease.

4 markers supported at this time.

copy artkmulti support into the Max File Paths or add the folder to your File Preferences.

(see Readme included in the Windows download for additional information about installing and running the Windows version).

Some known issues with jit.ogre models and draw_pixels as demonstrated in help patch.

Change your markers by creating new patterns at http://flash.tarotaro.org/blog/2009/07/12/mgo2/

Modify the file objectdata2 in a text editor at /multi/objectdata2 and adding your pattern files accordingly.
